The construction material is painted steel or stainless steel.

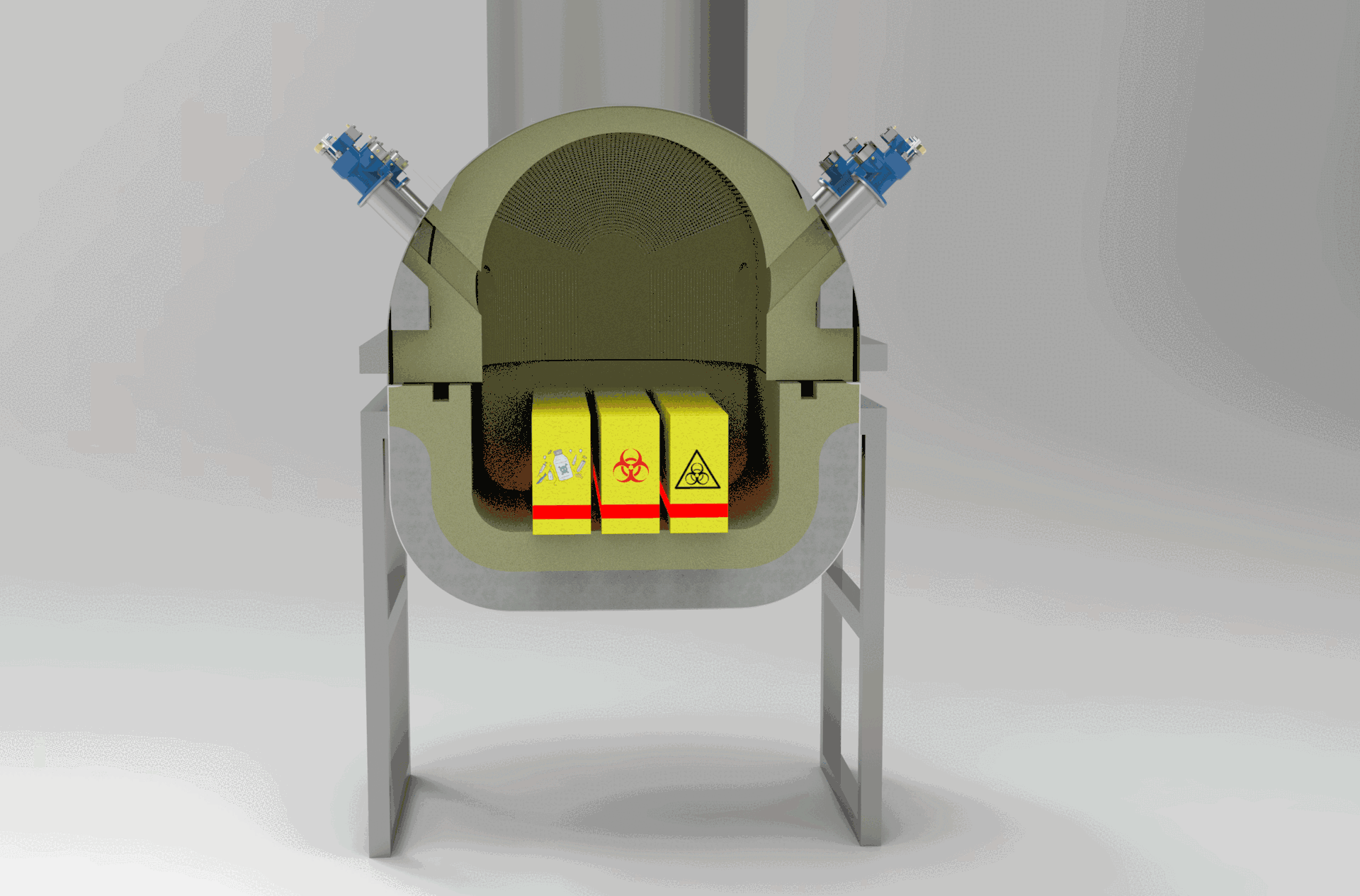

The incinerator chamber is designed according to ASME standards for pressure and temperature.
The external surface temperature of all incinerator components is limited and considered to be T4 class. All hot surfaces above 60 oC are protected.
THE BASIC SMOKE TREATMENT UNIT INCLUDES
⦁ Cooling exchanger to reduce the temperature of the smoke. (stainless steel SS304)
⦁ Wet scrubber purifier (stainless steel SS304).
⦁ Activated carbon filter for odor elimination (stainless steel SS304).
⦁ Chimney 4 m, (SS 304)
⦁ Rain cover.
⦁ The drain valve.
The incinerator unit is equipped with an automatic loading system which has the appropriate dimensions to be loaded from containers for hospital, industrial, dangerous or loose waste.
Each load is transferred to the incineration location for a cycle lasting 60 minutes.
An emergency chimney is installed at the smoke outlet, built with calendered and electro-welded SS316L stainless steel sheets, all entirely lined with refractory and insulating material having the same characteristics as the combustion chambers.
• Cylindrical shape.
• Smoke outlet approximately 8 meters above the ground.
• Automatic "clapet" closing valve that opens automatically in the event of a power failure.
Models |
HEF 30 - 50 - 100 - 200 -350 |
|
Capacity hourly* |
30 - 500 |
Litres / hour |
Main combustion chamber |
.png)
|
|
Post combustion chamber |
|
|
Cimney |
|
|
Material |
Stainless steel OPTIONAL |
Steel / Stainless steel AISI 304 - AISI 316 |
Main chamber burners |
2-8 |
Gas / Diesel / Hybrid |
Post combust. chamber burners |
1-2 |
Gas / Diesel / Hybrid |
Discharge of ash |
OPTIONAL |
Loader tipping |
Automatic movement |
|
Servo-hydraulic / electric |
Exchanger Flue gases /air |
OPTIONAL |
Hot air production |
Exchanger Flue gases / Water |
OPTIONAL |
Hot water production |
Filtro Denox |
OPTIONAL |
Ceramic Bag filter reactor |
Wet scrubber |
OPTIONAL |
Catalytic |
Chimney |
OPTIONAL |
8 meters |
Active carbon filter |
OPTIONAL |
3-8 Cartridges |
Dedicated software |
|
Industrial computer |
Emission Continous control |
OPTIONAL |
Various manufacturers |
* The hourly capacity depends on the nature of the material treated and its chemical and physical properties. |
||
ALL RAW MATERIALS AND COMPONENTS ARE FROM EUROPEAN, U.K AND U.S.A ORIGIN |
||
Electronics |
||
Touch Screen controls and settings |
|
10'' full color with graphics and guide |
Control panel |
|
2 doors cabinet 1200X1800X400 |
Main chamber temperature control |
|
3 points |
Post incineration chamber temp control |
|
2 points |
Automatic operation |
|
PLC |
Data recording function |
|
Daily-weekly-monthly |
Data recording (Time, Temp, Quant.) |
|
USB flash |
Remote Assistance |
|
Requires internet connection |
User remote control |
Optional |
Requires internet connection |
Certifications / Warranty |
||
Warranty for manufacturing defects |
|
12 months |
CE Conformity |
|
Incinerator and peripherals |
ATEX certification |
Optional |
For all the gearmotors |
Complementary services |
||
Remote assistance for 4 months |
|
Weekdays / hours 9.00-18.00 |
Annual remote assistance |
Optional |
Weekdays / hours 9.00-18.00 |
On site repair |
Optional |
To be agreed |
Installation / Testing / Start |
Optional |
To be agreed |
6 months maintenance (Italy) |
Optional |
Annual contract |
6 months maintenance (Europe) |
Optional |
Annual contract |
6 months maintenance (World) |
|
|
Annual maintenance (Italy) |
Optional |
Annual contract |
Annual maintenance (Europe) |
Optional |
Annual contract |
Annual maintenance (world) |
|
|
Transport in Italy |
Optional |
To be agreed |
Transport in Europe |
Optional |
To be agreed |
Transport outside Europe |
Optional |
To be agreed |

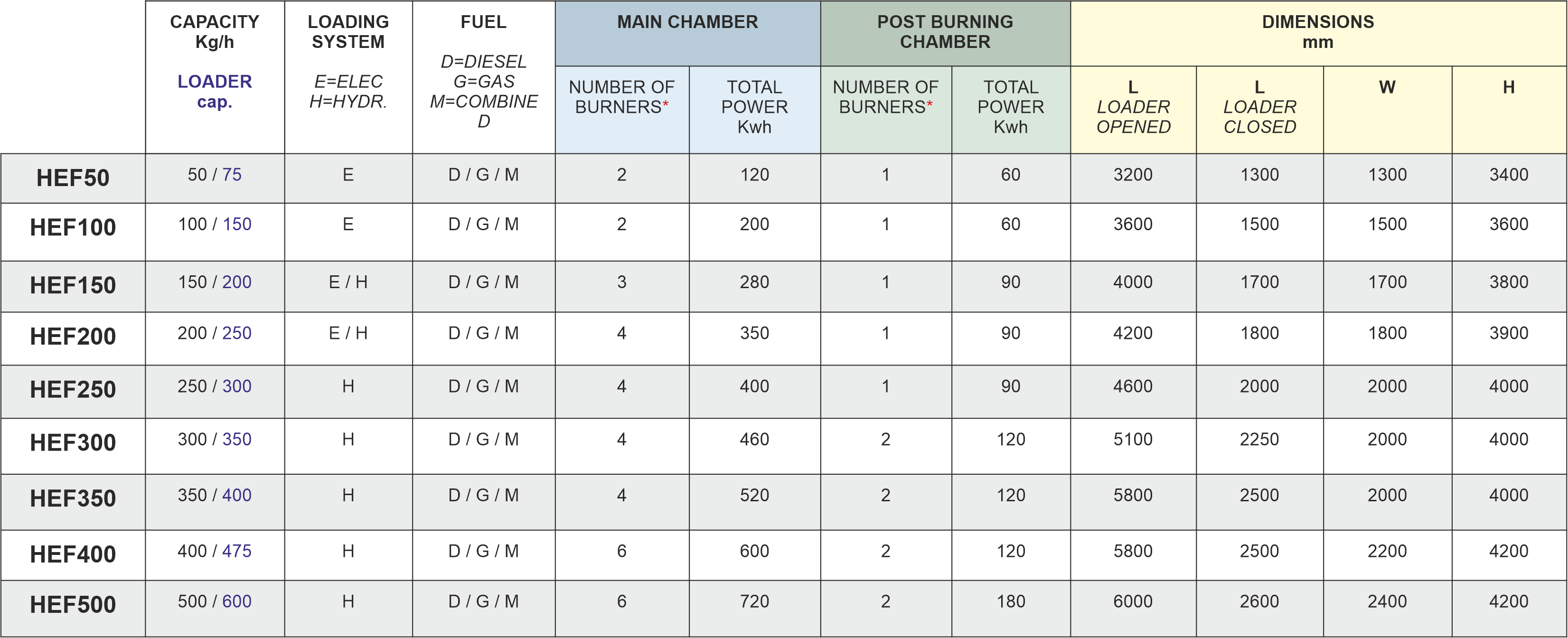

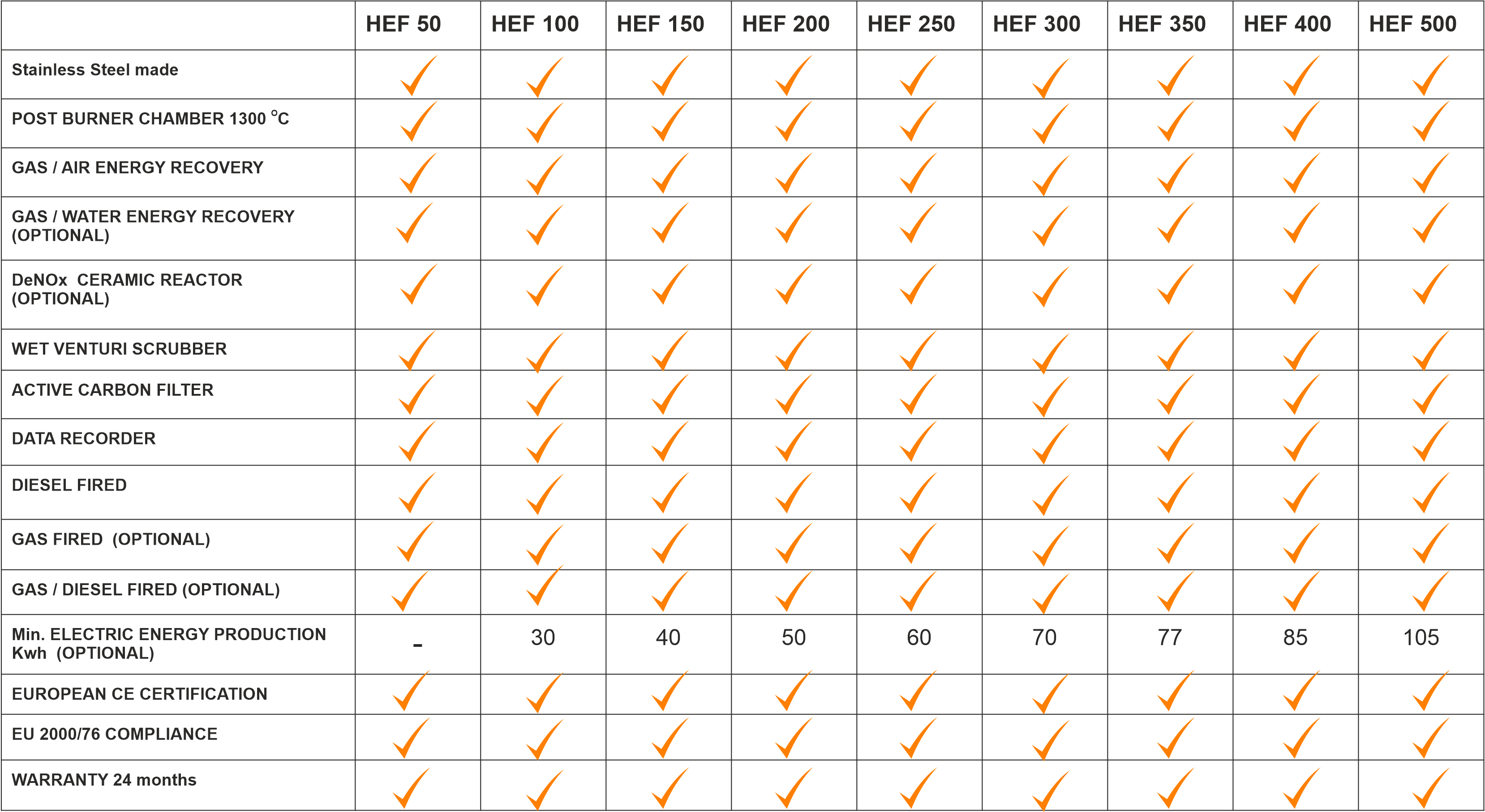

Click on the tables to enlarge
)
)
